Developing an iOS 11 Substrate Tweak
In this article, I will cover the steps needed in order to develop a Cydia Substrate jailbreak tweak.
Background (How does it even work)
A tweak is basically a dynamic library that is being injected to specified applications (according to a predefined filter) that can actually hook some of the Obj-C \ Swift methods (or messages if you’re using Apple’s terms) after you do that, you can just choose your own implementation of the method.
Tools
We will be using the following tools in order to accomplish our task.
Frida
Before we even start hooking to methods, we need to know what method we want to hook to.
I like to use this neat tool called frida, it’s basically a dylib injection framework written which has a good python API
Installation

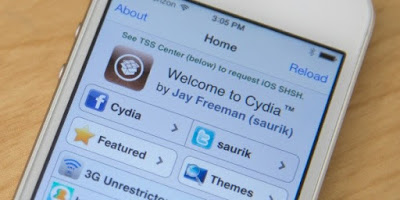

On your device, open up Cydia and add the following repo https://build.frida.re
On your Mac, install frida using python pip pip install frida
Theos
Theos is a little tool which helps you with all the application creation and compilation.
You can find all you need to know about installing Theos here: https://github.com/theos/theos/wiki/Installation
After you download theos, download the appropriate private SDK into your $THEOS/sdks folder from here: https://github.com/theos/sdks
Writing the tweak
In this tutorial, I will guide you through the creation of WhatsappReadReceiptsDisabler – a simple tweak I have written to disable read receipts in WhatsApp.
Finding the right method
This is where the true power of Frida comes in hand.
First, we want to know the name of the process we are looking for, run
1
frida-ps -U | grep -i whatsapp
frida-ps is like ps (shows running processes), -U means it should this command on the connected USB device (which will be your iPhone).
Gives us this output:
1
2
3
4
5
PID Name
---- -------------------------------------------------
1667 WhatsApp
635 AppleIDAuthAgent
1210 AssetCacheLocatorService
We can see that WhatsApp is the name of our app, and 1667 is the current PID
Now we will try this line:
1
frida-trace -U -m "-[* *Receipt*]"
Frida trace is a tool for printing calls for methods, here we use the obj-c filter of methods that contain the string Receipt in them (using wildcards), this will give us the following output (after getting into one of the conversations):
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
54599 ms -[WAChatViewController enqueueMessagesForSendingReadReceipts:0x1d0a41080]
54662 ms -[XMPPConnection sendReadReceiptsForMessagesIfNeeded:0x1d085d2b0]
54662 ms | -[WAMessage needsSendReadReceipt]
54662 ms | -[WAMessage needsSendReadReceipt]
54662 ms | -[WAMessage needsSendReadReceipt]
54662 ms | -[WAMessage needsSendReadReceipt]
54662 ms | -[WAMessage needsSendReadReceipt]
54662 ms | -[WAMessage needsSendReadReceipt]
54662 ms | -[WAMessage needsSendReadReceipt]
54663 ms | -[XMPPMultiReceipt addReceiptId:0x1d1243300 edit:0x0]
54663 ms -[XMPPConnection sendReadReceiptsForMessagesIfNeeded:0x1d0a41080]
54663 ms | -[WAMessage needsSendReadReceipt]
54663 ms | -[WAMessage needsSendReadReceipt]
54663 ms | -[WAMessage needsSendReadReceipt]
54663 ms | -[WAMessage needsSendReadReceipt]
54663 ms | -[WAMessage needsSendReadReceipt]
54663 ms | -[WAMessage needsSendReadReceipt]
54663 ms | -[WAMessage needsSendReadReceipt]
My guess is that [XMPPConnection sendReadReceiptsForMessagesIfNeeded] is the method we are looking for.
Hooking
Let’s create the tweak using theos
1
$THEOS/bin/nic.pl
Select the appropriate settings, in the filter field we will choose:
1
net.whatsapp.WhatsApp
as this is the identifier of the WhatsApp application (you can find this by ssh-ing to your device and running ps -xe)
A folder will be created, looking inside we will find a file named Tweak.xm open it and add the following lines:
1
2
3
4
5
6
7
8
9
10
11
12
13
%hook XMPPConnection
- (void) sendReadReceiptsForMessagesIfNeeded:(id)arg {
UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"ROFL"
message:@"Dee dee doo doo."
delegate:self
cancelButtonTitle:@"OK"
otherButtonTitles:nil];
[alert show];
%orig;
}
%end
This will cause the method to open an alert view each time the method is being called so we will know we got the right method.
Build the package
1
make package
And deploy to device:
1
THEOS_DEVICE_IP=[your device ip] make install
after doing so, we can just remove the code from inside the method, this will make the method do nothing (and not send the read receipts).
Download Tweak : https://github.com/oguzhanvarsak/whatsappTweak
